SigLoch XE-CÜT Pro XTEND

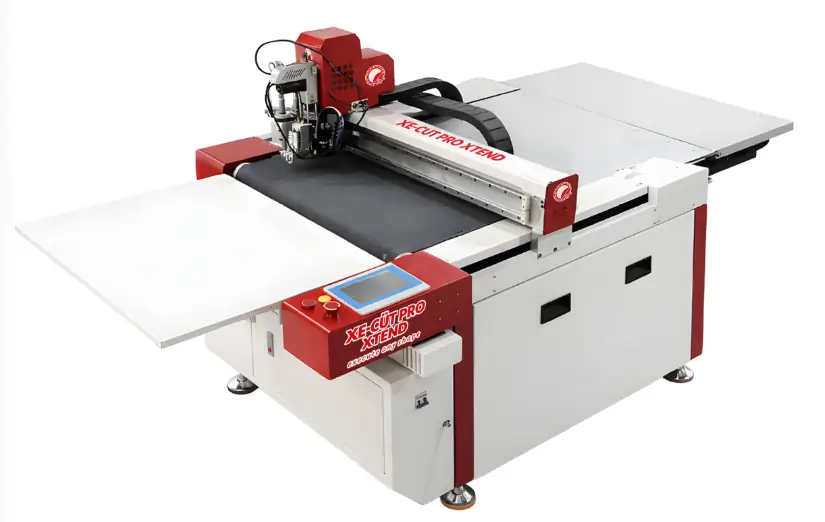

SigLoch XE-CÜT Pro XTEND – Compact Digital Flatbed Cutter for Large Sheets
SigLoch XE-CÜT Pro XTEND redefines what a compact digital flatbed cutter for large sheets can achieve. Designed for modern digital print bureaus, it enables finishing of 900 × 600 mm jobs and beyond—while retaining the footprint of a 600 × 400 mm machine.
Built specifically as a compact digital flatbed cutter for large sheets, XE-CÜT Pro XTEND enables B2 / Double Demy size execution without the footprint, cost, or complexity of a large-format cutting system.
Through an intelligent extended table and two-step workflow, XE-CÜT Pro XTEND bridges everyday digital finishing with occasional large-format, high-value work—without forcing you to invest in a larger cutter, expand floor space, or outsource profitable jobs.
Key Features
- Execute Larger Jobs Without a Larger Footprint
Finish B2 / Double Demy size work using an extended workflow—without owning a B2-size cutter. - Advanced XY Robotics
Precision XY motion ensures accurate cutting, creasing and structural detailing. - Multi-Tool System with Pneumatic Control
Full-cut, kiss-cut, oscillating knife, creasing, active tool and V-groove tools with controlled downforce and servo precision. - Oscillating Knife & V-Groove as Standard
Packaging-grade finishing capability for box prototypes, carton samples and rigid mock-ups. - High-Speed, High-Accuracy Performance
Linear speeds up to 1200 mm/s with ±0.1 mm repeat accuracy. - Smart Auto-Feeding with QR-Based Job Setup
Vacuum feeding with variable air-jet separation and QR code reading for fast, error-free changeovers. - Wide Substrate Compatibility
Handles materials from 120 GSM paper up to 6 mm thick substrates, including rigid boards and specialty materials. - Compact, Production-Grade Build
Single-chassis construction designed for space-constrained environments. - Dongle-Free Open Software Platform
License-free software with reverse creasing and intuitive file preparation. - User-Friendly Touch Interface
Tool depth, test cuts and parameter control via touchscreen. - Made in India
Faster service response, readily available spares and nationwide support.
Why Choose Bindwel Digital Flatbed Cutting Solutions
- Designed for large-sheet execution without large-machine ownership
- Eliminates outsourcing for occasional oversized jobs
- Optimised for digital print bureaus with space constraints
- Backed by Bindwel’s manufacturing, service and application expertise
- Designed as a compact digital flatbed cutter for large sheets, enabling oversized job execution without large-machine ownership
Technical Specifications
| Specification | Details |
|---|---|
| Bed Size | 670 mm x 440 mm |
| Linear Speed | 1200 mm/s |
| Tools | Oscillating Knife (6 mm), V-Groove Tool, Creasing Wheel, Kiss-Cutting Blade, Cutting Blade, Optional Perforating Wheel |
| Max. Thickness | Up to 6 mm |
| Min. Thickness | 100 GSM |
| Feeding Mechanism | Vacuum Feed with Clamps Mounted on Gantry (Auto Feed) |
| Pile Height (Feeding) | Up to 100 mm |
| Power Consumption | 4 KW |
| Maximum Sheet Size | 600 mm x 400 mm |
| Minimum Sheet Size | 210 mm x 297 mm (with Auto Feeder) |
| Tool Depth Setting | Via Touchscreen Interface |
| Suported File Formats | PLT, DXF, DST, DSB, PDF, CUT, NC, PTS, Vcut |
| Registration | Camera-Based Registration Mark Reader |
