SigLoch XE-CÜT Pro

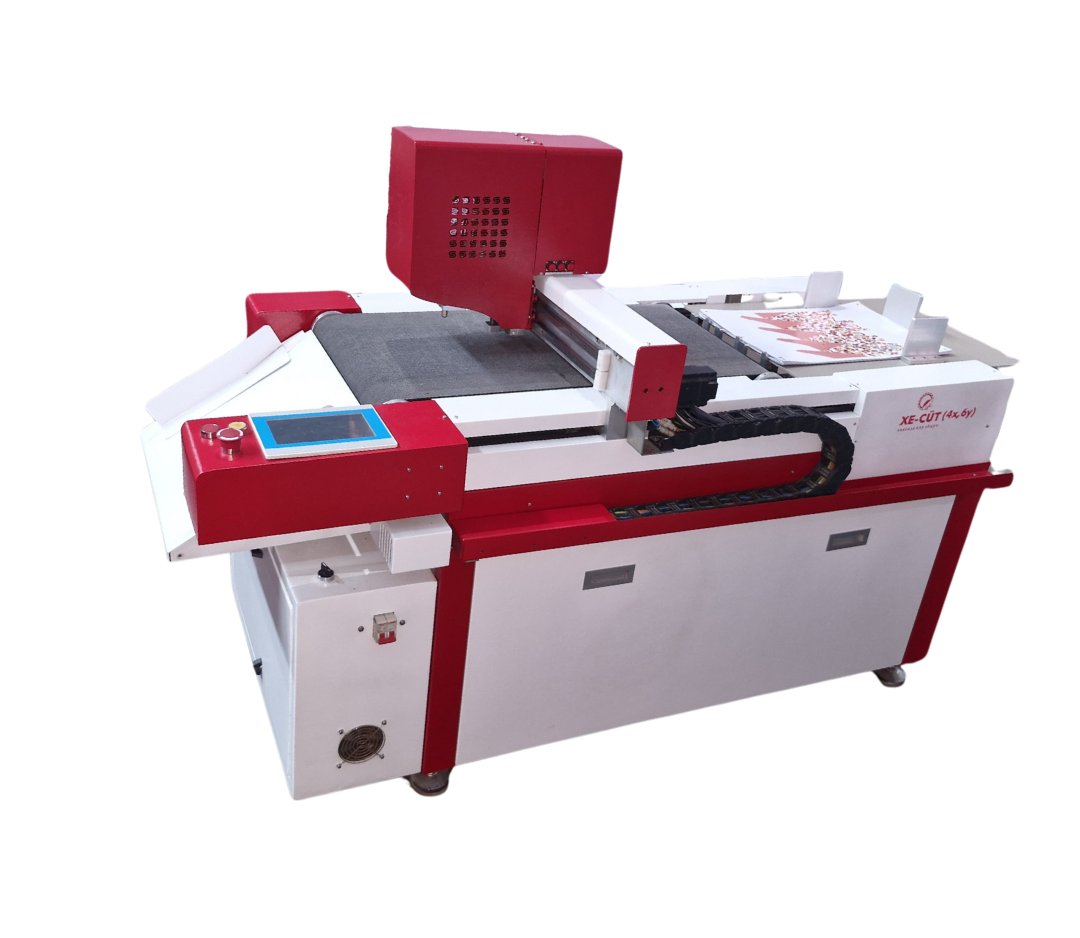

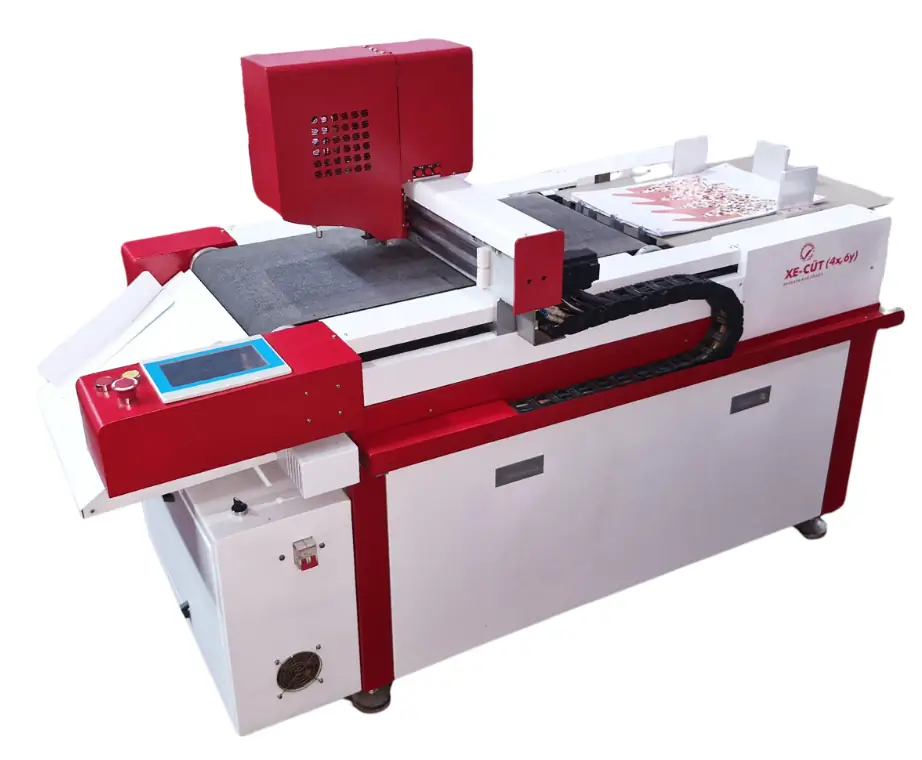

SigLoch XE-CÜT Pro – Digital Flatbed Cutter for Short Run
SigLoch XE-CÜT Pro is a digital flatbed cutter for short run applications, built for precision finishing in the digital print era. As a digital flatbed cutter for short run, XE-CÜT Pro enables fast changeovers, accurate execution, and reliable finishing without dies or tooling delays.
It enables accurate cutting, creasing, kiss-cutting and V-grooving across substrates ranging from 100 GSM to 6 mm thickness, eliminating the need for bulky, offset-centric cutting systems.
Designed as a compact, space-efficient solution, XE-CÜT Pro delivers versatility, accuracy and operational control for short run workflows where flexibility and turnaround time matter most.
Key Features
- Precision Cutting for Any Shape
Supports complex cuts, kiss-cuts, half-cuts, creasing and V-grooving with consistent accuracy. - Multi-Tool System with Pneumatic Control
Oscillating knife, creasing wheel, perforating tool, V-groove tool and kiss-cutting blades integrated into one system. - High Speed with Repeat Accuracy
Linear speed up to 1200 mm/s with repeat accuracy of ±0.1 mm. - Auto Feeding with Smart Sheet Separation
Vacuum-fed system with variable air-jet separation for uninterrupted operation. - QR Code & Registration Mark Reading
Camera-based registration system enables fast job recognition and accurate alignment. - Wide Substrate Compatibility
Handles paper, boards, plastics and specialty substrates from 100 GSM to 6 mm. - Touchscreen Control Interface
Tool depth, test cuts and parameter settings controlled through an intuitive touch panel.
Why Choose Bindwel Digital Flatbed Cutting Solutions
- Designed specifically as a digital flatbed cutter for short run digital finishing workflows
- Compact footprint with industrial-grade precision
- Eliminates dependency on offset-oriented cutting systems
- Backed by Bindwel’s application expertise and service network
Technical Specifications
| Specification | Details |
|---|---|
| Bed Size | 670 mm x 440 mm |
| Linear Speed | 1200 mm/s |
| Tools | Oscillating Knife (6 mm), V-Groove Tool, Creasing Wheel, Kiss-Cutting Blade, Cutting Blade, Optional Perforating Wheel |
| Max. Thickness | Up to 6 mm |
| Min. Thickness | 100 GSM |
| Feeding Mechanism | Vacuum Feed with Clamps Mounted on Gantry (Auto Feed) |
| Pile Height (Feeding) | Up to 100 mm |
| Power Consumption | 4 KW |
| Maximum Sheet Size | 600 mm x 400 mm |
| Minimum Sheet Size | 210 mm x 297 mm (with Auto Feeder) |
| Tool Depth Setting | Via Touchscreen Interface |
| Suported File Formats | PLT, DXF, DST, DSB, PDF, CUT, NC, PTS, Vcut |
| Registration | Camera-Based Registration Mark Reader |
