Cut. Kiss-cut. Crease. Perforate. Any shape. Any substrate. Zero dies. Zero limits.

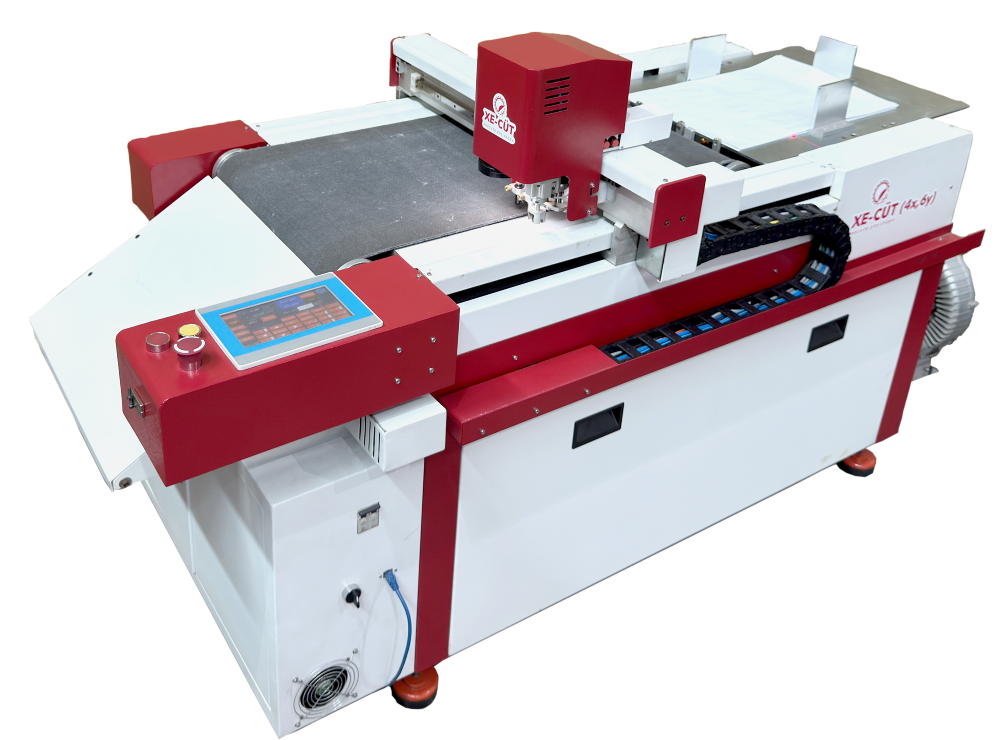

SigLoch XE-CÜT is India’s first advanced digital flatbed cutting table designed for printers who need speed, flexibility, and precision without the cost or delay of traditional die-making. Whether you handle short-run packaging, prototyping, custom labels, stickers, or sample boxes, XE-CÜT helps you produce finished shapes in minutes—not days.
With precise XY robotics, pneumatic tool control, QR code-based job setup, and compatibility with materials up to 600 GSM, XE-CÜT brings unmatched versatility to digital print finishing. From intricate shapes to production-grade prototypes, the machine delivers outstanding accuracy, repeatability, and efficiency.
Detailed Specifications
SPECIFICATION
Linear Speed
Max Sheet Size
Tools
Min Sheet Size (Auto Feeder)
Material Thickness
Minimum Thickness
Repeat Accuracy
Sheet Separation
DETAILS
1200 mm/s
600 mm × 400 mm
Creasing Wheel, Cutting Blade, Kiss-Cutting Blade
210 mm × 297 mm
Up to 600 GSM
100 GSM
±0.1 mm
Air-powered variable jet stream separation
SPECIFICATION
Feeding
Pile Height (Feeding)
Power Consumption
File Formats Supported
Registration
QR Code Reader
Connection
Dimensions
DETAILS
Vacuum feed with gantry-mounted clamps
Up to 100 mm
4KW
PLT, DXF, DST, DSB, PDF, CUT, NC, PTS, Vcut
Camera with motion control
Same camera for QR scanning
LAN
2600 mm (L) × 950 mm (W) × 1100 mm (H)
The People's Choice!
“XE-CÜT transformed our sample-making workflow. What used to take days now takes minutes.”
— Digital Packaging Printer, Mumbai
“The accuracy on stickers and custom shapes is unbeatable. Zero reliance on dies.”
— Label Printer, Bengaluru
Why Choose SigLoch XE-CÜT
No dies required — ideal for fast short-runs & prototypes
Cuts any shape with precision using XY robotic motion
Handles a wide range of substrates up to 600 GSM
Ultra-fast 1200mm/s cutting for rapid turnaround
QR-based setup for instant job changeovers
Frequently Asked Questions (FAQs)
Does XE-CÜT require dies or physical tooling?
No. It is a fully digital cutting system—no dies, no tooling cost, no waiting time.
What materials can it cut?
Paper, board, stickers, transparent sheets, and substrates up to 600 GSM.
Can it handle small short-run packaging jobs?
Yes. It’s specifically optimized for short-run boxes, prototypes, and mock-ups.
How accurate is the cutting?
±0.1 mm, thanks to XY robotics and camera-based registration.
Is it suitable for digital print finishing?
Perfectly — especially for urgent, on-demand, custom-shaped jobs.
