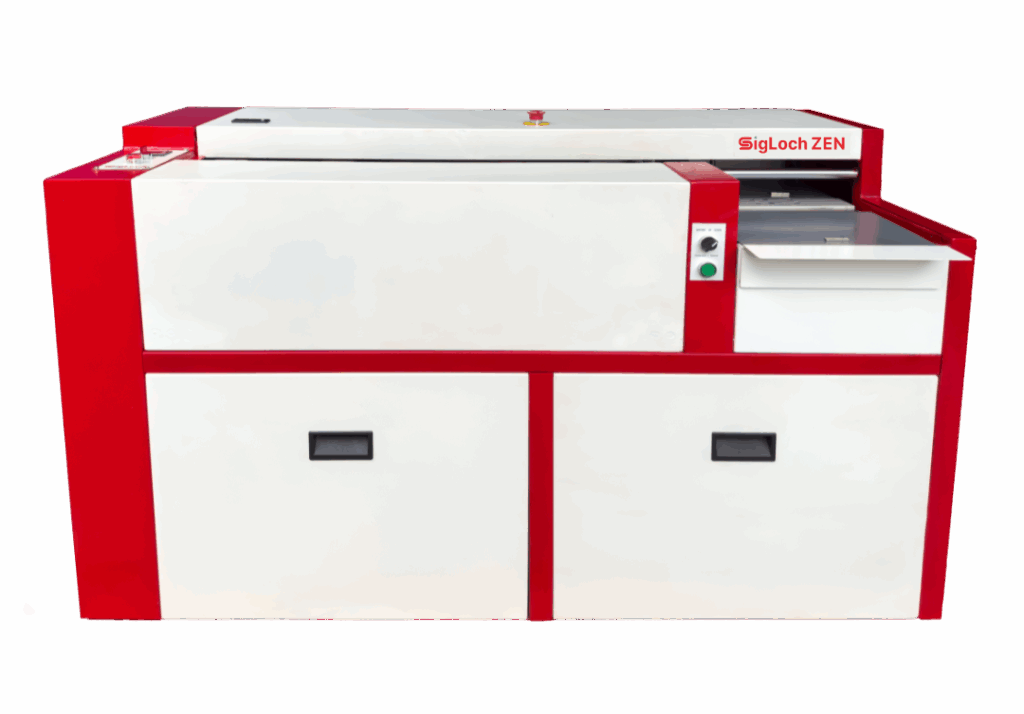

SigLoch ZEN

SigLoch ZEN

    • Single Clamp Perfect Binder with easily adjustable book clamp
    • Milling station with Cutter, Notching and powerful dust extractor. Milling Depth setting provision
    • Milling Unit having Down /Off mechanism for sewn / stapled books
    • High Quality Gluing system with three roller applicators, heated reverse spinner
    • Separate side gluing
    • Cover Nipping Station with facility to control the nipping pressure
    • Timers for adjusting feed-in time, cover nipping duration and delivery
    • Book delivery at Nipping station
    • Safety Guards separate Clamp from Milling Cutter.
    • Wide range of jobs: be it lose leaves or folded sheets; thin or thick they can all be bound with easy job changeover
    • Compact footprint to suit the digital print ecosystem

Optionals:

    1. Automated thickness setting
    2. Single Phase
    3. Scope for energy reduction

Brochure of SigLoch Zen

Technical Data

Spine Length 100 - 300 mm
Book Height 70 - 300 mm
Spine Thickness 1mm - 50 mm
Side Gluing Driven
Clamping Pneumatic
Power Consumption 3KW (If Compressed Air Available) 3.75 KW with Compressor
Mechanical Speed 150 cycles per hour
Glue Pot Capacity 3 Kg
Power Supply 230 V (+ / -10%), 50Hz, Single Phase
Machine Weight 250 Kg
Dimensions 1550mm (L) x 650mm (W) x 1000mm (H)
