From Gathering to Final Trim in One Continuous Flow

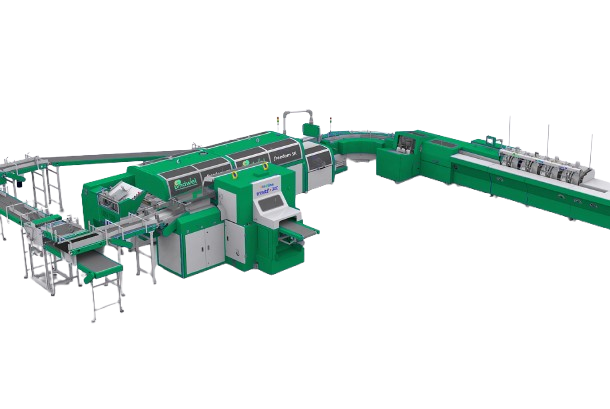

The Freedom Bindline is Bindwel’s smart high-speed perfect binding line that connects Signa gatherer, Freedom 5000 binder, and Trimit inline trimmer into a single, synchronized system. It’s built for large textbook and commercial plants that need reliable 1500–5000 books/hour production with minimal handling, consistent quality, and real-time production visibility.
With calibrated clamps, advanced spine preparation, energy-efficient glue systems, and integrated HMI controls, Freedom Bindline delivers a true inline book factory on a compact footprint.
Detailed Specifications
SPECIFICATION
Gathering Stations (Signa)
Number of Clamps (Binder)
Maximum Book Size
space
Minimum Book Size
Book Spine Thickness
Maximum Cover Size
DETAILS
4 – 20 stations
12
420 × 300 mm (direct clamp feeding) / 420 × 150 mm (conveyor feeding)
140 × 110 mm
3 – 50 mm
420 × 650 mm (300 + 50 + 300)
SPECIFICATION
Minimum Cover Size
Cover Weight Range
space
Cover Stack Height
Mechanical Speed
Electrical Supply
Air Requirement (Dry Air)
DETAILS
140 × 220 mm
80–300 GSM (Bond), 100–350 GSM (Coated)
120 mm
1500 to 5000 cycles/hour (configuration dependent)
415 V, 3-Phase, 50 Hz (40 kW)
75 CFM, 8 Bar (16-station configuration)
The People's Choice!
“Our challenge was synchronizing gathering, binding, and trimming without bottlenecks. Freedom Bindline delivered a seamless inline workflow, improving throughput consistency and eliminating manual handling delays between stages.”
CDC Printers, Kolkata
“At high speeds, maintaining binding and trimming accuracy was critical. Freedom Bindline’s stable inline configuration ensured precise gathering, strong binding, and clean trimming—allowing us to scale production without compromising finished book quality.”
Salasar Imaging Systems, Noida
“We were heavily dependent on manual coordination between machines. Freedom Bindline automated the entire post-press flow, reducing manpower dependency, minimizing errors, and delivering predictable output across long production runs.”
Print Plus, Bhiwandi
“Handling mixed-format, high-volume jobs was slowing us down. Freedom Bindline’s flexible configuration and centralized controls enabled faster changeovers and smooth inline operation, helping us meet tight delivery schedules reliably.”
Benchmark Press, Delhi NCR
Why Choose Freedom Bindline
Complete Inline Workflow
Signa 5K gatherer, Freedom 5000 binder and Trimit inline trimmer work in sync—signatures in, finished trimmed books out, with no intermediate manual handling.
Fast Changeovers with Calibrated Clamps
12 calibrated book clamps with thickness indicators and centralised single-action clamp setting help you switch jobs quickly across common textbook formats.
Smart Spine Preparation & Gluing
Multi-function combination milling (milling, notching, roughening, sanding, brushing) plus a 3-roller glue tank with head/tail cut-off, doctor blade control and integrated premelter ensures strong, consistent binds at high speed.
Intelligent Control & Diagnostics
Signa 5K gatherer, Freedom 5000 binder and Trimit inline trimmer work in sync—signatures in, finished trimmed books out, with no intermediate manual handling.
Safety & Reliability Built-In
Signa 5K gatherer, Freedom 5000 binder and Trimit inline trimmer work in sync—signatures in, finished trimmed books out, with no intermediate manual handling.
Frequently Asked Questions (FAQs)
What types of books is Freedom Bindline best suited for?
Primarily textbooks, workbooks, and high-volume commercial books in standard formats where inline speed and consistency are critical.
Can I use the machines offline as well?
Yes. Signa gatherer, Freedom 5000 binder and Trimit trimmer can be installed inline or used as individual units, depending on your layout and production strategy.
Does the line support PUR?
Freedom 5000 can be configured with EVA or PUR systems. PUR or hybrid gluing options can be discussed at the configuration stage.
What is a typical speed in real production?
While the mechanical range is 1500–5000 cycles/hour, actual speed depends on book size, paper, adhesive and handling practices. Most textbook plants run in the 2500–4000 books/hour zone for sustained production.
Can the line be upgraded later (e.g., cameras, MIS, extra stations)?
Yes. Freedom Bindline is modular—camera systems for signature control, extra gathering stations, additional conveyors or data interfaces can be added as your volume and automation needs grow.
